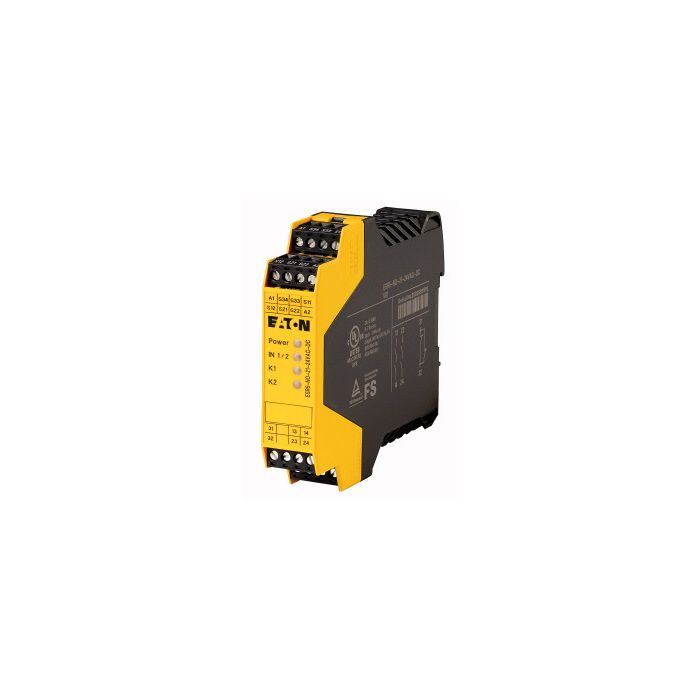

Eaton ESR5 Safety relay
Article No.:
118700
Part No.:
ESR5-NO-21-24VAC-DC
Brand:
Safety relay emergency stop/protective door, 24VDC/AC, 2 enabling paths
Availability:
Forward delivery 6-9 weeks
| Part No. | ESR5-NO-21-24VAC-DC |
|---|---|
| UOM | EA |
| Weight (KG) | 0.17 |
|---|---|
| Dimension Width (mm) | 22.50 |
| Dimension Height (mm) | 99.00 |
| Dimension Depth (mm) | 114.50 |
Description
Safety relay dual-channel, for implementing the basic functions emergency switching off, emergency stop, and protective door, supply voltage 24VDC or 24VAC 50/60Hz, 2 Enable current paths (IEC/EN 60204 Stop category 0), 1 signal current path, busbar tag shroud to EN 50274 with vertical actuation from the front finger- and back-of-hand proof, suitable for cat. 4 according to EN 954-1 / PL e according to EN ISO 13849-1 / SILCL 3 according to IEC 62061 / SIL 3 according to IEC 61508, degree of protection IP20, installation location IP54 minimum, TÜV tested, rated impulse voltage 6 kV / safe isolation, reinforced insulation
