Utility Meters

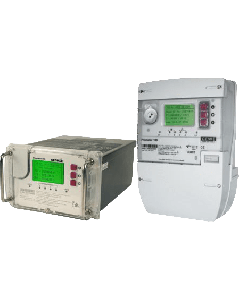

PROMETER 100 WALL. Module 1-RS232.Class 0.5S.57,7-240V 3P4W, 100-240V 3P3W.1(10)A. Module 2-RS485.Self,Hi Aux,4Cnfg I/O,7 O/P,W5

AMMETER-96x96MM, MOVING IRON, SHORT SCALE 90DEG,SCALED:0-400/480A, RATING:0-5/6A,50HZ,CTR:400/5A FITTED WITH A LOW GLARE WINDOW AND TERMINAL COVER Class 1.5

AMMETER-96x96MM, MOVING IRON, SHORT SCALE 90DEG,SCALED:0-200/240A, RATING:0-5/6A,50HZ,CTR:200/5A FITTED WITH A LOW GLARE WINDOW AND TERMINAL COVER class 1.5

VOLTMETER-96x96MM, MOVING IRON, SHORT SCALE 90DEG,SCALED:0-15KV, RATING: 0-150V AC, 50HZ, VTR: 11kV/110V FITTED WIH A LOW GLARE WINDOW AND TERMINAL COVER Class 1.5

IQ72, 72*72 ,CL 1.5,104-110v , Scale -0-480KV, Measuring :(0-400KV)

IQ72, 72*72,90deg,CL 1.5 Scale -0-158.4 KV/110V Measuring :(0-132kv)

IQ72, 72*72 ,90 deg,CL 1.5, 1.2 A ,Dual Scale Ammeter , Dual Scale (0-3600 A, 0-2400A) Measuring :(0-3000A , 0-2000A))

IQ72, 72*72 ,90 deg,CL 1.5, 1.2 A ,Dual Scale Ammeter , Dual Scale (0-4800 A, 0-2400A) Measuring :(0-4000A , 0-2000A))

IQ72, 72*72 ,90 deg,CL 1.5, 1.2 A ,Dual Scale Ammeter , Dual Scale (0-1800 A, 0-1200A) Measuring :(0-1500A , 0-1200A))

Ethernet TCP-IP Module for Elite 500 Comunication Module

Prometer 100 Wall ; 0.5S ; Self Powered ; Optical Port for communication ; I/O - Nil ; LT Variant,415V Abudhabi Variant

Instrument Transformer , LT CT plastic casing 104-80(45), ring type, 30VA, class 1, 2000/5A, internal diameter 65mm

Prometer 100 Class 0.5S , Wall Mounted , Communication : Optical & RS485 , Power supply : 60-240V AC/DC , I/Os – 4 configurable I/Os

Assembly of rack for Prometer 100, 11 inch, with packing

PROMETER 100 RACK.Class 0.2S.1(10)A.Self,Hi Aux,4Cnfg I/O,8O/P,R2.HV4/HV3

MFM Meter, VAF, Power ,PF

PROMETER 100 WALL; 0.5S; AUX POWERED 60-240V AC/DC, OPTICAL PORT FOR CONFIGURABLE I/O

Prometer 100 Wall;0.5S; self powered ; optical port for communication ;i/o-NIL, LT variant ,400V

Software, Base Computer Software, M-Cubed100 Free license, with cord, CEWE. PBC000-184-001

Assembly of panel kit, Prometer 100. MAX10Z-211

Digital Energy Meter Elite 440,96x96 SQ MM ACCURACY CLASS:0.5s,CT/VT RATIO; SITE CONFIGURABLE,AUX SUPPLY: 80-300V AC/DC, COMMS: MODBUS (RS485)

ENERGY METER ; MODEL PROMETER 100 TYPE-P3E;CLASS-0.2S;SELF POWER 60-240 V AC/DC (+/- 20%)

Digital Energy Meter Elite 440,96x96 SQ MM ACCURACY CLASS:0.5s,CT/VT RATIO; SITE CONFIGURABLE,AUX SUPPLY: 80-300V AC/DC, COMMS: MODBUS (RS485)

Prometer 100 Wall ; 0.5S ; Self Powered ; Optical Port for communication ; I/O - Nil ; LT Variant

Prometer 100 Wall ; 0.5S ; Self Powered ; Optical Port for communication with Ethernet Port ( Modbus TCP/IP and DLMS ) ; I/O - Four Configurable I/O

Prometer 100 Wall ; 0.2S , Dual RS485 + Ethernet ; 4 Configurable I/O and 7 Pulse outputs ; Dual Aux ( Self powered + 60-240V AC/DC )

SARAL, two wire, 230/240V phase to neutral, Ib 10A, Imax 100A, class 1.0, 1107 port, BLE, Vidhi

SARAL305, 5-100A, CL 1.0, 1107.RS 485, BLE.50 Hz.One plastic seal.Sticker seal.Meter mounting kit

BACnet IP for ELITE500
