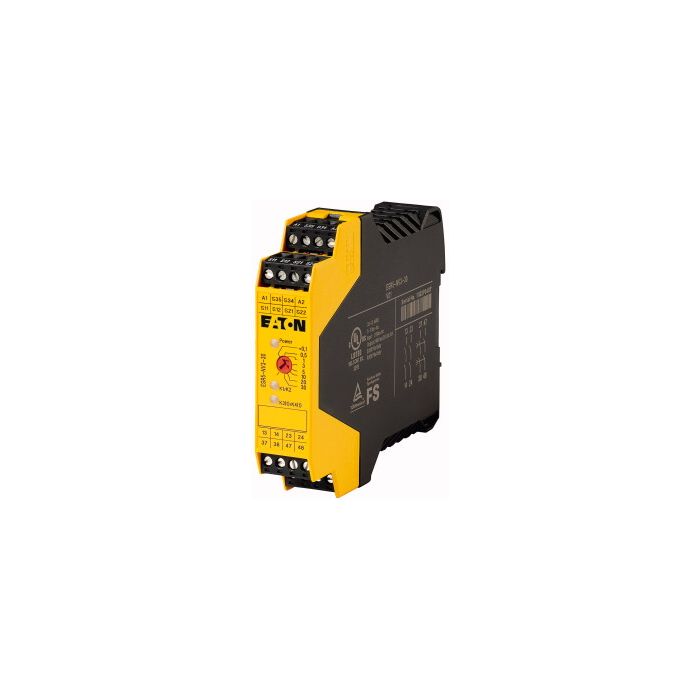

Eaton ESR5 Safety relay
Article No.:
118705
Part No.:
ESR5-NV3-30
Brand:
Safety relay emergency stop/protective door/light curtain, 24 V DC, 4 enabling paths(2del.)
Availability:
Forward delivery 6-9 weeks
| Part No. | ESR5-NV3-30 |
|---|---|
| UOM | EA |
| Weight (KG) | 0.17 |
|---|---|
| Dimension Width (mm) | 22.50 |
| Dimension Height (mm) | 99.00 |
| Dimension Depth (mm) | 114.50 |
Description
Safety relay dual-channel, off-delayed, for implementing the basic functions emergency switching off, emergency stop, and light curtain, supply voltage 24VDC, 2 Enable current paths (IEC/EN 60204 Stop category 0), 2 Enable current paths (IEC/EN 60204 Stop category 1), 1 signal current path, busbar tag shroud to EN 50274 with vertical actuation from the front finger- and back-of-hand proof, suitable for cat. 4 according to EN 954-1 / PL e according to EN ISO 13849-1 / SILCL3 according to IEC 62061 / SIL3 only for High-Demand requirements, degree of protection IP20, installation location IP54 minimum, TÜV tested, rated impulse voltage 4 kV / basic isolation
