Availability:Forward delivery 6-9 weeks -
Part No.: BALS-127571Panel mounting socket outlet INNOLINQ QUICK-CONNECT angled 16A 5p (3p+N+PE) 400V (200/346 - 240/415V~) 6 h IP54 Frequency: 50/60Hz Colour code: red RAL 3000UOM: P10Panel mounting socket outlet INNOLINQ QUICK-CONNECT angled
Version ETIM-9 Class EC001317 - Panel-mounted CEE socket outlet (IEC 60309) IEC-amperage 16 Voltage according to EN 60309-2 400 V (50+60 Hz) red Number of poles 5p Clock hour position 6 Identification colour Hinged lid:- Red RAL 3000 , Enclosure :- Grey RAL 7035 Connection system screwless spring terminals with KONTEX-ULTRA contact Insert direction Angled Material Enclosure - Polyamide, Contacts - carrier is Polyamide, Contact is brass. The contact carrier is made of high temperature resistant material Military model FALSE Flange size vertical 85 Drill hole distance vertical 70 Flange size horizontal 85 Drill hole distance horizontal 70 More
Availability:Forward delivery 6-9 weeks -
Part No.: BALS-127611INNOLINQ Panel mounting socket Quick-Connect, angled 32A 3p 230V 6h IP54 screwless terminals hinge with internal connection (IA) flange size: 85 x 85 mmUOM: P10Panel mounting socket outlet INNOLINQ QUICK-CONNECT angled
Version ETIM-9 Class EC001317 - Panel-mounted CEE socket outlet (IEC 60309) IEC-amperage 32 Voltage according to EN 60309-2 230 V (50+60 Hz) blue Number of poles 3p Clock hour position 6 Identification colour blue RAL 5015, Hinged lid blue RAL 5015, Enclosure grey RAL 7035 Connection system screwless spring terminals with KONTEX-ULTRA contact Insert direction Angled Material Enclosure - Polyamide, Contacts - carrier is Polyamide, Contact is brass Military model FALSE Flange size vertical 85 Drill hole distance vertical 70 Flange size horizontal 85 Drill hole distance horizontal 70 More
Availability:Forward delivery 6-9 weeks -

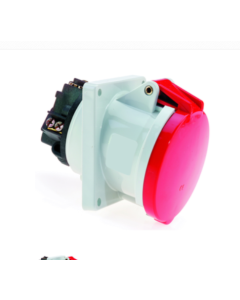

Part No.: BALS-1202Panel mounting socket outlet, angled 63A 5p 400V 6h IP44 screw terminals nickel plated contacts flange size: 114 x 114 mmUOM: PKVersion ETIM-9 Class EC001317 - Panel-mounted CEE socket outlet (IEC 60309) IEC-amperage 63 Voltage according to EN 60309-2 400 V (50+60 Hz) red Number of poles 5p Clock hour position 6 Identification colour Red RAL 3000, Hinged lid red RAL 3000, Enclosure grey RAL 7035 Connection system Screwed terminal- as box terminal with Kontex-contact Insert direction Angled Material Plastic- Polyamide Military model FALSE Flange size vertical 114 Drill hole distance vertical 90 Flange size horizontal 114 Drill hole distance horizontal 90 More
Availability:Forward delivery 6-9 weeks -
Part No.: BALS-21352Plug Quick-Connect TE Plus - BALS-21352UOM: EAMulti-Grip cable gland 32A 4p 500V 7h IP67 screwless terminals nickel plated contacts
Integrated cable clamp and additional water evacuation openings
For cable diameter from 11 up to max. 23,5 mmMore
Availability:Forward delivery 6-9 weeks -
Part No.: 16041wall mounting socket outlet, switched, interlockedUOM: EAVersion ETIM-9 Class EC001324 - CEE socket outlet, disconnectable, with fuse (IEC 60309) IEC-amperage 16 Number of poles 5 Voltage according to EN 60309-2 400 V (50+60 Hz) red Clock hour position 6 Switch Mechanical locking Type of switch Special switch With earth leakage switch FALSE Empty locations on mounting rail FALSE Housing material Plastic Model Base unit and cover Protection None Military model FALSE Current 16A Number of poles 5p Arangement of phases 3p+N+PE Position of earth contact 6 h Voltage 200/346 - 240/415V~ Frequency 50/60Hz Protection degree IP67 Colour code red RAL 3000 Colour of appliance Hinged lid red RAL 3000
Housing bottom grey RAL 7035
Housing screws grey RAL 7035
Bayonet ring grey RAL 7035
Housing top grey RAL 7035
Control knob grey RAL 7035Connection design screwless spring terminals with Kontex-Kontakt Maximum conductor size 4,0 qmm Cable entry top entry M25/M25 bottom entry M25 More
Availability:Forward delivery 6-9 weeks -
Part No.: BALS-21238Plug Quick-Connect TE Plus Multi-Grip cable gland 16A 3p 230V 6h IP67 screwless terminals nickel plated contactsUOM: EA
Availability: In stock -
Part No.: BALS-2190Plug TE Multi-Grip cable gland 125A 3p 110V 4h IP67 screw terminals nickel plated contactsUOM: EA
Availability:Forward delivery 6-9 weeks
-
Part No.: BALS-51012824BALS ELDIS VARIA BOX-125 AMPS Underfloor box: 1 piece CEE coupling 125A, 5P, 400V, 50Hz, 6h, IP67, red incl. approxUOM: EA
Availability:Forward delivery 6-9 weeks
-
Availability:Forward delivery 6-9 weeks
-
Availability:Forward delivery 6-9 weeks
-
Availability:Forward delivery 6-9 weeks
-
Availability:Forward delivery 6-9 weeks -
Availability:Forward delivery 6-9 weeks -
Part No.: BALS-200Plug INNOLINQ QC 16A 5p (3p+N+PE) 400V (200/346 - 240/415V~) 6 h IP54 Frequency: 50/60HzUOM: EA
Availability: In stock -
Availability:Forward delivery 6-9 weeks -
Part No.: BALS-201Plug INNOLINQ QC 32A 5p (3p+N+PE) 400V (200/346 - 240/415V~) 6 h IP54 Frequency: 50/60HUOM: EAAvailability:Forward delivery 6-9 weeks -
Part No.: BALS-2114Plug INNOLINQ QC 32A 3p (2P+PE) 230V (200 - 250V~) 6 h IP54 Frequency: 50/60Hz Colour code: blue RAL 5015 RALUOM: EA
Contacts: the contacts are brass, the contact carrier is made of high temperature resistant material Maximum conductor size: 6,0 qmm Material of enclosure: Polyamide Connection system: screwless spring terminals with KONTEX-ULTRA contact Cable entry: with cable gland
More
Availability:Forward delivery 6-9 weeks -
Part No.: BALS-211Plug INNOLINQ QC 16A 3p (2P+PE) 230V (200 - 250V~) 6 h IP54 Frequency: 50/60HUOM: EAColour code: blue RAL 5015 RAL 5015 Contacts: the contacts are brass, the contact carrier is made of high temperature resistant material Maximum conductor size: 4,0 qmm Material of enclosure: Polyamide Connection system: screwless spring terminals with KONTEX-ULTRA contact Cable entry: other Flange size vertical: 85 mm Flange size horizontal: 85 mm Drill hole distance vertical: 70 mm Drill hole distance horizontal: 70 mm
More
Availability:Forward delivery 6-9 weeks -
Part No.: BALS-16104GT wall mounting socket outlet switched, interlocked 32A 3p 230V 6h IP67UOM: EA
Availability:Forward delivery 6-9 weeks -
Part No.: BALS-13328Panel mounting socket outlet TE straight 32A 7p 230V 9h IP44 screw terminals brass contacts flange size: 75 x 75 mmUOM: EA
Availability:Forward delivery 6-9 weeks -
Part No.: BALS-13329Panel mounting socket outlet TE straight 32A 7p 400V 6h IP44, screw terminals nickel-plated contacts flange size: 75 x 75 mmUOM: EAAvailability:Forward delivery 6-9 weeks -
Part No.: BALS-13326Panel mounting socket outlet TE straight 16A 7p 230V 9h IP44 screw terminals nickel plated contacts flange size: 75 x 75 mmUOM: EA
Availability:Forward delivery 6-9 weeks -
Part No.: BALS-160460Surface mounting socket outlet switched, interlocked 32A 4p 440V 11h IP67UOM: EASurface mounting socket outlet switched, interlocked 32A 4p 440V 11h IP67 screwless terminals nickel plated contacts interlocking in the upper part of the enclosure dimension of enclosure: 225 x 118 mm cable entry: at top closed 1xM25 at bottom open 1xM25 at bottom closed
More
Availability:Forward delivery 6-9 weeks -
Availability:Forward delivery 6-9 weeks -
Availability:Forward delivery 6-9 weeks -
Availability:Forward delivery 6-9 weeks -
Part No.: BALS-12310Panel mounting socket outlet, angled 32A 3p 230V 6h IP44 screw terminalsUOM: EA
Availability:Forward delivery 6-9 weeks -
Part No.: BALS-12078Panel mounting socket outlet, angled 16A 5p 400V 6h IP44 screw terminalsUOM: EA
Availability:Forward delivery 6-9 weeks -
Availability:Forward delivery 6-9 weeks -
Part No.: BALS-12311Panel mounting socket outlet, angled 32A 4p 400V 6h IP44 screw terminalsUOM: EA
Availability:Forward delivery 6-9 weeks -
Part No.: BALS-1215Panel mounting socket outlet, angled 32A 5p 400V 6h IP44 screw terminalsUOM: EA
Availability:Forward delivery 6-9 weeks -
Part No.: BALS-12080Panel mounting socket outlet, angled 16A 3p 230V 6h IP44 screw terminalsUOM: EA
Availability:Forward delivery 6-9 weeks -
Availability:Forward delivery 6-9 weeks -
Part No.: BALS-211157Plug Nominal current 200A Rated current 250A Nominal voltage 400V Coding 6h Configuration 3ph+N+PE Pilot 2 Aluminium collar+plastic housing IP67 IK10UOM: EA
Availability:Forward delivery 6-9 weeks -
Part No.: BALS-211166Plug Nominal current 400A Rated current 450A Nominal voltage 400V Coding 6h Configuration 3ph+N+PE Pilot 2 Aluminium collar and housing IP67 IK10UOM: EA
Availability:Forward delivery 6-9 weeks -
Availability:Forward delivery 6-9 weeks -
Part No.: 16604Wall mounting socket outlet switched and interlocked - housing dimensions 260x160UOM: EA
Availability:Forward delivery 6-9 weeks -
Availability: In stock -
Availability: In stock
