Baying systems TS 8 Stainless steel
Part No.:
8451600
Brand:
Availability:
Forward delivery 6-9 weeks
| Part No. | 8451600 |
|---|---|
| UOM | EA |
| Packaging Unit | EA |
| Material | Enclosure frame: Stainless steel 1.4301 (AISI 304), 1.5 mm Roof: Stainless steel 1.4301 (AISI 304), 1.5 mm, exterior ushed Door: Stainless steel 1.4301 (AISI 304), 2.0 mm, exterior ushed Rear panel: Stainless steel 1.4301 (AISI 304), 1.5 mm, exteri |
| Protection category IP ACC IEC 60529 | IP 55 |
| Protection category NEMA | NEMA 12 |
| Scope of delivery | Enclosure frame Door(s) R/h door hinge with single-door enclosures, may be swapped to opposite side Roof plate Gland plates Rear panel Mounting plate 4 eyebolts Lock: 3 mm double-bit 2 TS punched rails 18 x 38 mm |
| Weight (KG) | 194.70 |
|---|---|
| Dimension Width (mm) | 1,200.00 |
| Dimension Height (mm) | 2,000.00 |
| Dimension Depth (mm) | 600.00 |
Description

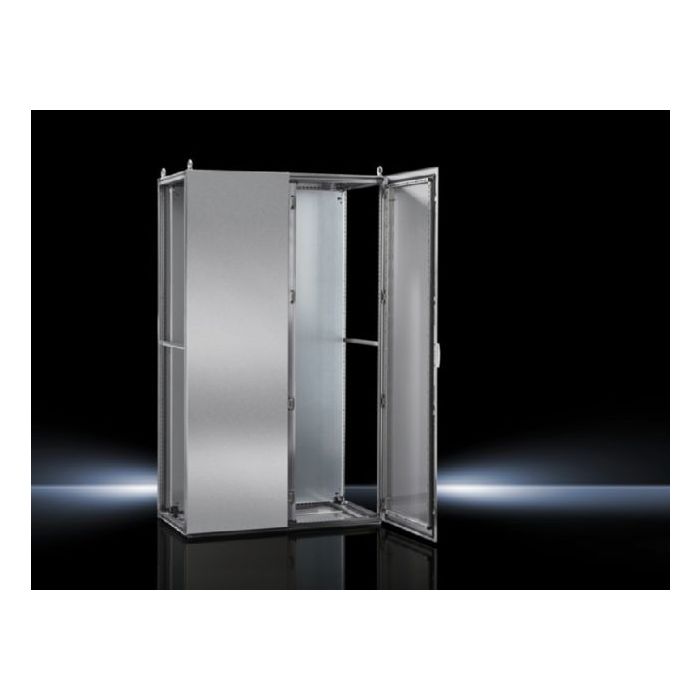

TS Bayed enclosure system, WHD: 1200x2000x600 mm, Stainless steel 1.4301, with mounting plate, two doors at the front
