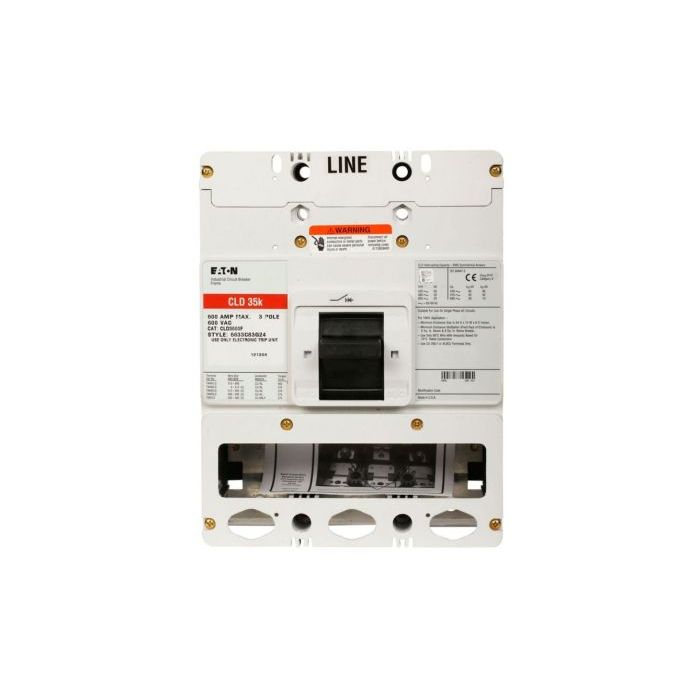

Eaton Series C electronic molded case circuit breaker, L-frame, CLDC, Electronic LS trip, 600A, Three-pole, 600A, 600 Vac, 250 Vdc, 200 kAIC at 240 Vac, 100 kAIC at 480 Vac, No terminals, Naval, 50°C, 50/60 Hz, Adjustable, 100% rated
Article No.:
CLDC3600FVWH09K29P07
Part No.:
CLDC3600FVWH09K29P07
Brand:
Product specifications
| Amperage Rating |
600 A
|
| Voltage rating |
600 Vac, 250 Vdc
|
| Trip Type |
T167
|
| Circuit breaker type |
CLDC
|
| Circuit breaker frame type |
Complete breaker
|
| Rating |
100% rated
|
| Series |
Series C
|
| Terminals |
Without terminals
|
| Frame |
L
|
| Frequency rating |
50 to 60 Hz
|
| Class |
Naval
|
| Calibration |
50°C
|
| Rated permanent current |
Adjustable
|
| Rating plug |
A6LES600T1 interchangeable
|
| Interrupt rating |
100 kAIC at 480 Vac
200 kAIC at 240 Vac |
| Number of poles |
Three-pole
|
| Trip rating |
600 A
|
| Type |
Current limiting
|
| Warranty |
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
|
| Certifications |
UL 489 Supplement S
|
Availability:
Forward delivery 5-7 weeks
