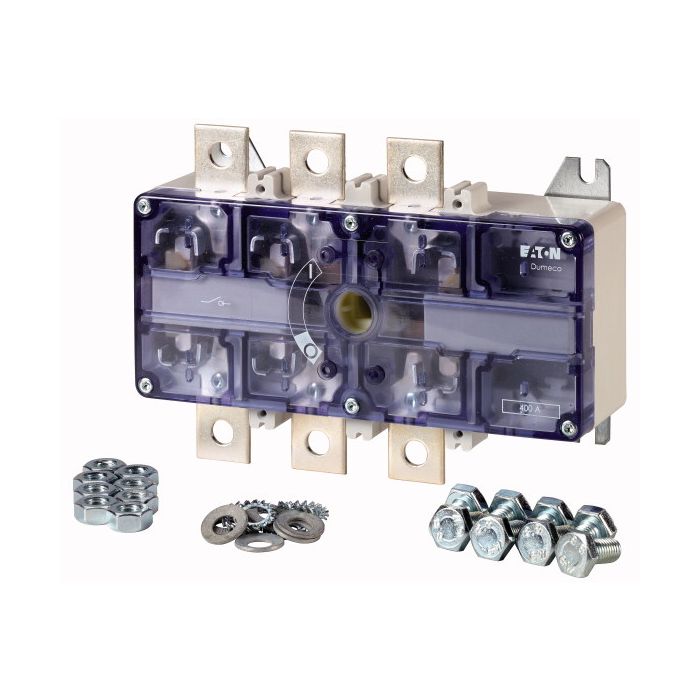

Switch-disconnector, 3 pole, 400 A, Without rotary handle and drive shaft, surface mounting
Article No.:
1814411
Part No.:
DMV-400N/3
Brand:
Switch-disconnector, DMV, 400 A, 3 pole, Stop Function optional, Without rotary handle and drive shaft
Availability:
Forward delivery 6-9 weeks
| Part No. | DMV-400N/3 |
|---|---|
| UOM | EA |
| Weight (KG) | 1.79 |
|---|
Description
Switch-disconnector, Product range: Switch-disconnector, Main switch, maintenance switch, Part group reference: DMV, Stop Function: optional, Without rotary handle and drive shaft, Notes: visible contacts, Information about equipment supplied: auxiliary contact fitted by user., including connection materials, 3 pole, Degree of Protection: IP00, IP20 with terminal cover, Design: surface mounting, Motor rating AC-23A, 50 - 60 Hz 400 V: P = 180 kW, Rated uninterrupted current: Iu = 400 A, Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, Switch-disconnector according to IEC/EN 60947-3
Resources / Data Sheets
