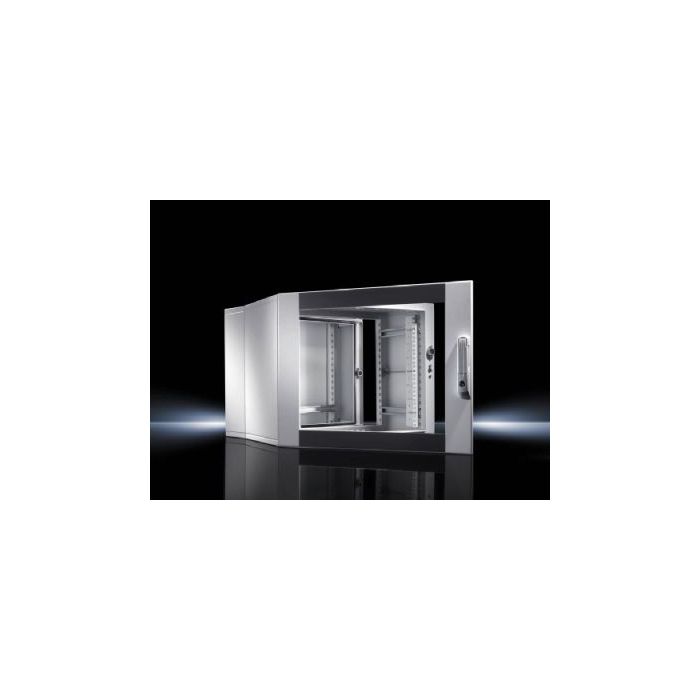

Wall-mounted enclosures EL, 3-part with punched rails and mounting angles, depth-variable
Part No.:
7715135
Brand:
Availability:
Forward delivery 5-7 weeks
| Part No. | 7715135 |
|---|---|
| UOM | EA |
| Packaging Unit | EA |
| Material | Wall and hinged part: Sheet steel, 1.5 mm Viewing window: Single-pane safety glass, 3 mm |
| Protection category IP ACC IEC 60529 | IP 55 |
| Scope of delivery | Wall section with solid gland plate, top and bottom, two vertical mounting rails and C rail, horizontal, for cable clamping Hinged part with 25 mm pitch pattern of holes in the front and rear frame, and two 482.6 mm (19") mounting angles at the fron |
| Weight (KG) | 41.00 |
|---|---|
| Dimension Width (mm) | 600.00 |
| Dimension Height (mm) | 746.00 |
| Dimension Depth (mm) | 473.00 |
Description
DK Wall-mounted enclosures, 3-part, WHD: 600x746x473 mm, 15 U, With punched rails, and mounting angles, depth-variable
