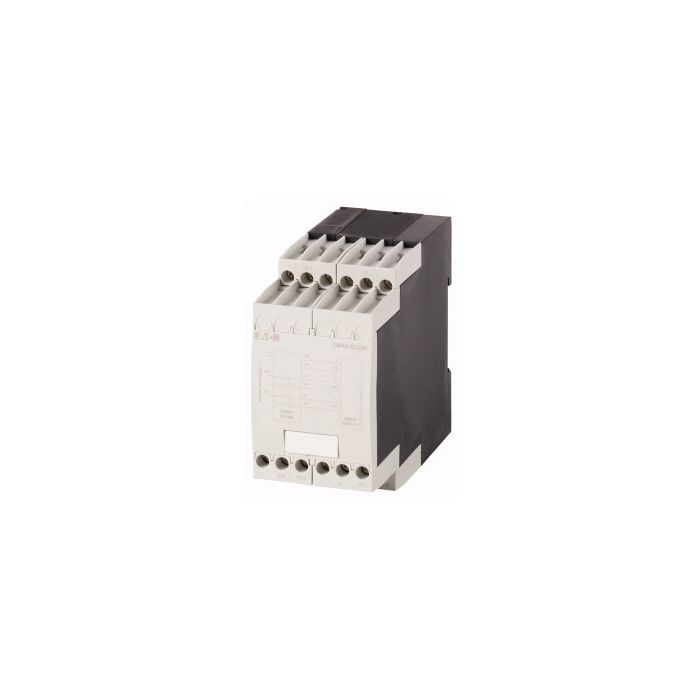

Eaton Moeller® series EMR6 Insulation monitoring relay
Article No.:
184775
Part No.:
EMR6-RC690
Brand:
Insulation monitoring relays, 0 - 690 V AC, 0 - 1000 V DC
Availability:
Forward delivery 6-9 weeks
| Part No. | EMR6-RC690 |
|---|---|
| UOM | EA |
| Weight (KG) | 0.18 |
|---|---|
| Dimension Width (mm) | 45.00 |
| Dimension Height (mm) | 78.00 |
| Dimension Depth (mm) | 100.00 |
Description
Insulation monitoring relays, Product range: EMR Measuring and monitoring relays, Coupling module, Expands the rated voltage range for the EMR6-R400-A-2 to 690 V AC or 1000 V DC, no supply voltage required, Rated operating voltage for the supply system being monitored: 0 - 690 V AC, 0 - 1000 V DC, Mounting position: As required, Fixing: Snap fixing, top-hat rail IEC/EN 60715, Width: 45 mm, Standards: IEC/EN 60255-6,
