Eaton Moeller® series C22 Pushbutton

Name: Eaton Moeller® series C22 Pushbutton
SKU: 121493
Price: 22.12 AED
Availability: InStock

Article No.:

121493

Part No.:

C22S-D-W-K11

Brand:

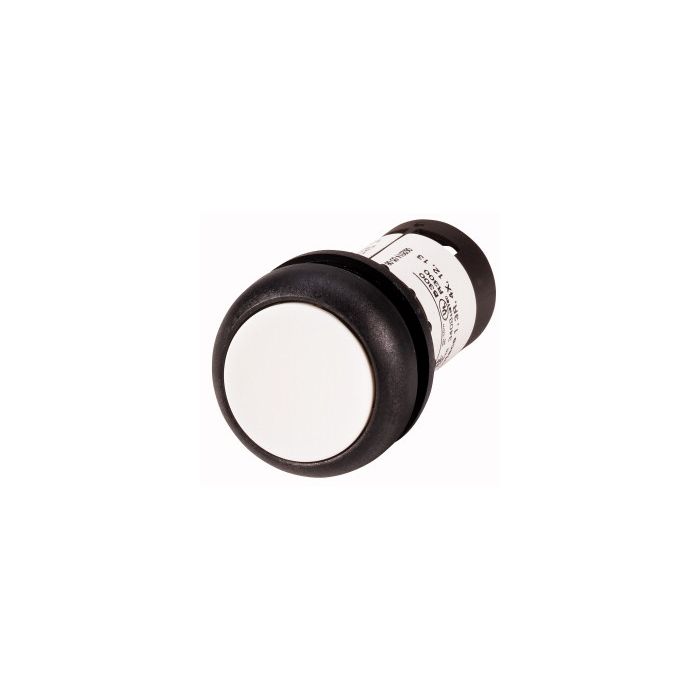

Pushbutton, Flat, momentary, 1 NC, 1 N/O, Screw connection, White, Blank, Bezel: black

Availability:

Forward delivery 6-9 weeks

Skip to the end of the images gallery

Skip to the beginning of the images gallery

More Information

Part No.	C22S-D-W-K11
UOM	EA

Weight (KG)	0.02
Dimension Width (mm)	30.00
Dimension Height (mm)	30.00
Dimension Depth (mm)	55.00

Description

Pushbutton, RMQ Compact, Complete unit, Design: Flat, momentary, Connection type: Screw connection, button plate: White, Button plate Blank, Name: None, Degree of Protection: IP66, IP67, IP69K, Bezel: black, Connection to SmartWire-DT: no, Contacts N/C = Normally closed: 1 NC, N/O = Normally open: 1 N/O, Contacts Notes: = safety function, by positive opening to IEC/EN 60947-5-1, Actuator travel and actuation force as per DIN EN 60947-5-1, K.5.4.1: mm 4.65, Maximum travel: mm 5.7, Minimum force for positive opening: N 20, Positive opening (ZW): yes, Standards: IEC/EN 60947-5-1, VDE 0660

Resources / Data Sheets

Data Sheet
