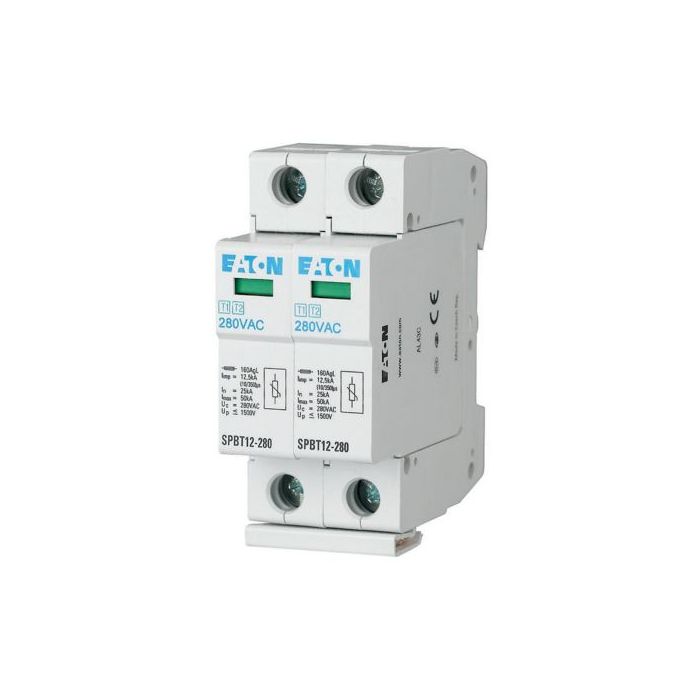

Lightning current and surge arresters kit, TN-S kit, 2 p
Article No.:
158309
Part No.:
SPBT12-280/2
Brand:
Technical data - electrical
| Voltage protection level |
1.5 KV
|
| Voltage protection level (DC+ - DC-) |
0 KV
|
| Voltage protection level (DC+/DC- - PE) |
0 KV
|
| Voltage protection level (L-N) |
0 KV
|
| Voltage protection level (L-PE) |
1.5 KV
|
| Voltage protection level (N-PE) |
0 KV
|
| Nominal voltage at AC |
280 V
|
| Nominal voltage at DC |
0 V
|
| Continuous voltage at AC - max |
280 V
|
| Continuous voltage at DC - max |
0 V
|
| PV-voltage - max |
0 V
|
| Lightning impulse current (10/350 µs) |
12.5 kA
|
| Follow current extinguishing capability |
0 kA
|
| Signalling at the device |
Optic
|
| Specific energy (W/R) |
39.1 kJ/Ohm
|
| Frame |
2 modular spacing
|
| Mounting method |
DIN rail (top hat rail) 35 mm
|
| Conductor cross section (flexible, fine-strand) - max |
35 mm²
|
| Conductor cross section (solid, solid-strand) - max |
25 mm²
|
| Degree of protection |
IP20
|
| System configuration type |
TN Other TN-S TT
|
| Test class |
Type 1 + 2
|
Availability:
Forward delivery 6-9 weeks
