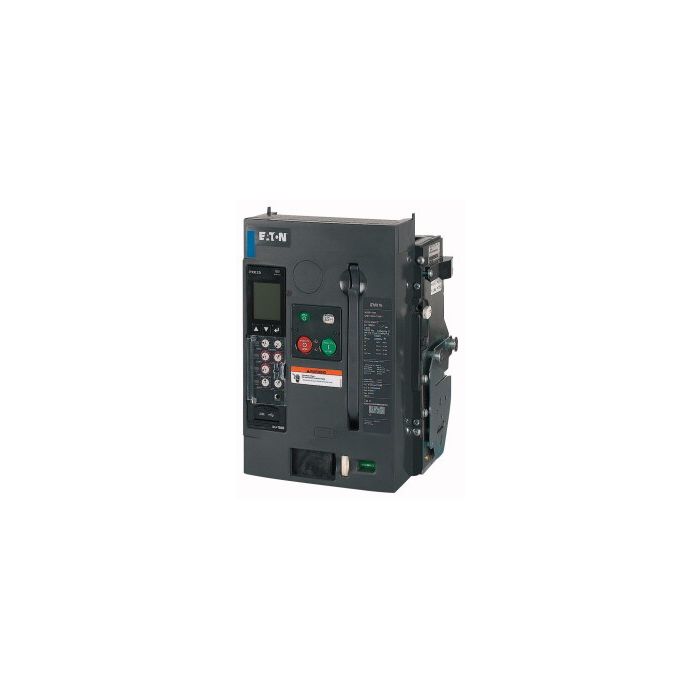

Eaton Moeller series IZMX/INX - ACB
Article No.:
183353
Part No.:
IZMX16H3-V10W-1
Brand:
Circuit-breaker, 3 pole, 1000A, 66 kA, Selective operation, IEC, Withdrawable
Availability:
Forward delivery 6-9 weeks
| Part No. | IZMX16H3-V10W-1 |
|---|---|
| UOM | EA |
| Weight (KG) | 27.74 |
|---|---|
| Dimension Width (mm) | 521.00 |
| Dimension Height (mm) | 597.00 |
| Dimension Depth (mm) | 584.00 |
Description
Circuit-breaker IZMX16 ( Air circuit-breakers/switch-disconnectors), 3 pole, Current Range: Up to 4000 A, Rated current = rated uninterrupted current( In = Iu): 1000 A, up to 440 V 50/60 Hz( Icu): 66 kA, up to 440 V 50/60 Hz( Ics): 50 kA, Overload release, min.( Ir): 400 A, Overload release, max.( Ir): 1000 A, Installation type: Withdrawable, Standard/Approval: IEC, Protective function: Selective operation
