Baying systems TS 8 EMC enclosures
Part No.:
8808750
Brand:
Availability:
Forward delivery 6-9 weeks
| Part No. | 8808750 |
|---|---|
| UOM | EA |
| Packaging Unit | EA |
| Material | Enclosure frame: Sheet steel with zinc magnesium coating, 1.5 mm Roof: Sheet steel with zinc magnesium coating, 1.5 mm Door: Sheet steel with zinc magnesium coating, 2.0 mm Rear panel: Sheet steel with zinc magnesium coating, 1.5 mm Gland plates: Shee |
| Protection category IP ACC IEC 60529 | IP 54 |
| Scope of delivery | Enclosure frame Door(s) Door hinged on the right, may be swapped to the left Rear panel Roof plate Gland plates Mounting plate 4 eyebolts Lock: 3 mm double-bit 2 TS punched rails 18 x 38 mm 2 support strips fitted in the enclosure depth |
| Weight (KG) | 137.00 |
|---|---|
| Dimension Width (mm) | 800.00 |
| Dimension Height (mm) | 2,000.00 |
| Dimension Depth (mm) | 800.00 |
Description

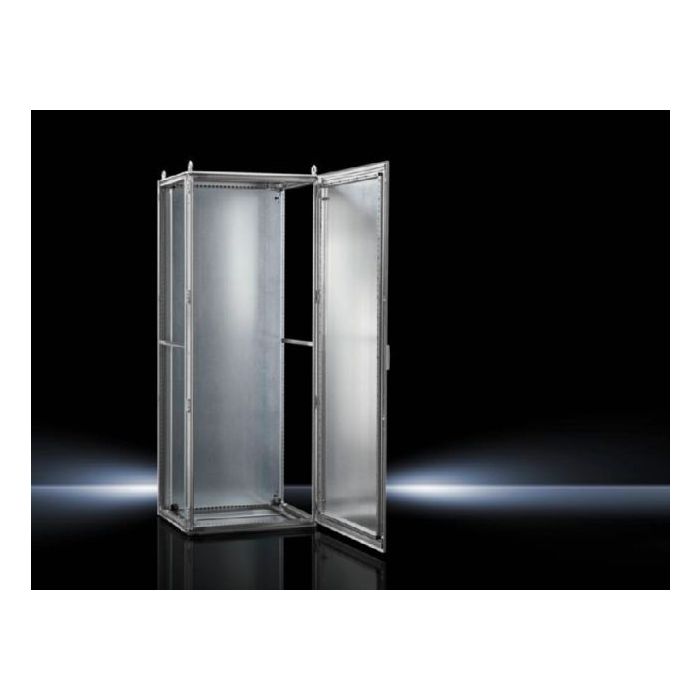

TS Bayed enclosure system, WHD: 800x2000x800 mm, Sheet steel, EMC version, with mounting plate, single door at the front
