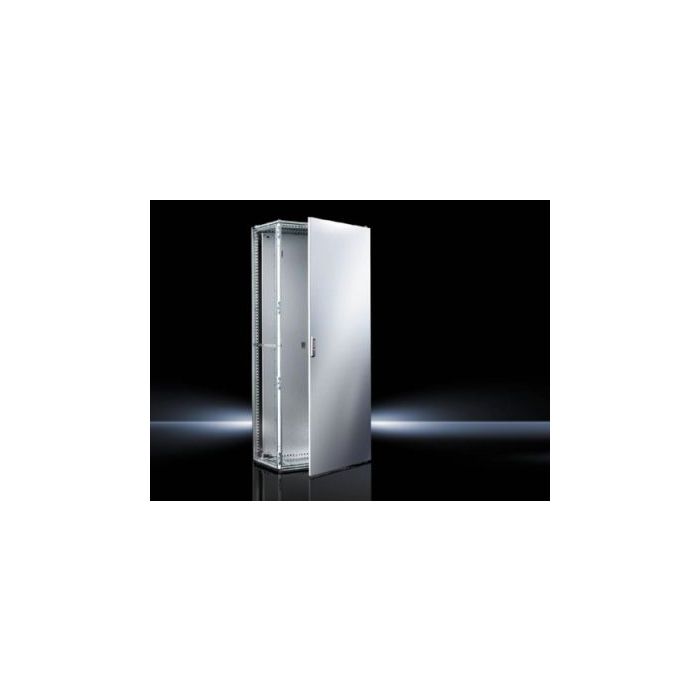

Baying enclosure system VX25, stainless steel IP 66/NEMA 4X
Part No.:
8458000
Brand:
Availability:
Forward delivery 6-9 weeks
| Part No. | 8458000 |
|---|---|
| UOM | EA |
| Packaging Unit | EA |
| Material | Enclosure frame: Stainless steel 1.4301 (AISI 304), 1.5 mm Roof: Stainless steel 1.4301 (AISI 304), 1.5 mm, exterior ushed Door: Stainless steel 1.4301 (AISI 304), 2.0 mm, exterior ushed Rear panel: Stainless steel 1.4301 (AISI 304), 1.5 mm, exteri |
| Protection category IP ACC IEC 60529 | IP 66 |
| Protection category NEMA | NEMA 4X |
| Scope of delivery | Enclosure frame Door Door hinged on the right, may be swapped to the left Roof Base Rear panel Mounting plate Lock: 3 mm double-bit 2 punched rails 18 x 39 mm |
| Weight (KG) | 129.00 |
|---|---|
| Dimension Width (mm) | 800.00 |
| Dimension Height (mm) | 2,000.00 |
| Dimension Depth (mm) | 600.00 |
Description
VX Baying enclosure system IP66 / NEMA4x, WHD: 800x2000x600 mm, stainless steel, 1.4301, with mounting plate, sheet steel, zinc-plaed, single door at the front
