MONITORING DEVICES

Function

SIRCO are manually or remotely operated multipolar load break switches.
They make and break under load conditions and provide safe isolation.
SIRCO are designed for 415 VAC and DC low voltage electrical circuits.

Technical Characteristics

Function

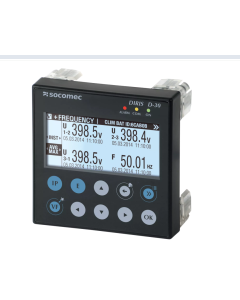

The DIRIS D-30 is a remote display that can be connected to a DIRIS B power meter or a DIRIS Digiware I-4x current module via an RJ9 cable.

Function

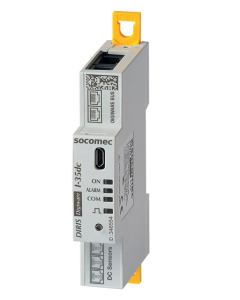

DIRIS Digiware Idc are DIN-rail mounted DC power monitoring modules. Associated with DIRIS Digiware Udc DC voltage measurement modules, they measure and monitor parameters such as power, energy and power quality of DC electrical circuits. With their design, they can be installed at the closest point to the circuit to measure.
The RJ12 current inputs allow a quick and error free connection to DC current sensors which are directly powered by the DIRIS Digiware Idc module (no external power supply needed). Adding DIRIS Digiware Idc modules to the monitoring system is easily done by clicking an RJ45 cable. This allows great flexibility to users wishing to add more metering points in the future.

Classification

DC voltage acquisition module DIRIS Digiware U-31dc 19.2-60 VDC

Function

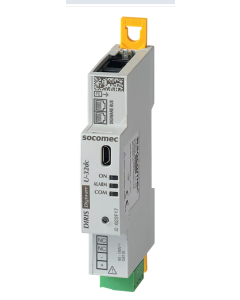

The DIRIS Digiware Udc modules measure the DC voltage and send the voltage sampling to all DIRIS Digiware Idc modules via the RJ45 bus.
For multi-point metering applications, this reduces the number of voltage connections to only one central point.
Measuring up to 180 VDC with a direct connection, they are compatible with typical nominal voltages (24 VDC, 48 VDC etc.).
Voltage adaptors can be added to the DIRIS Digiware U-32dc module, making it compatible with all voltage levels up to 1650 VDC.

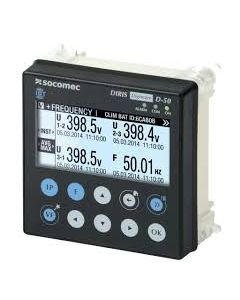

DIRIS Digiware D-50 and D-70 remote displays allow local visualization of measurements from DIRIS Digiware modules, and centralize the 24 VDC power supply and communication bus at a single point.

The D-50 and D-70 displays also act as the Ethernet gateway for all slave devices connected on the Digiware and RS485 bus.
