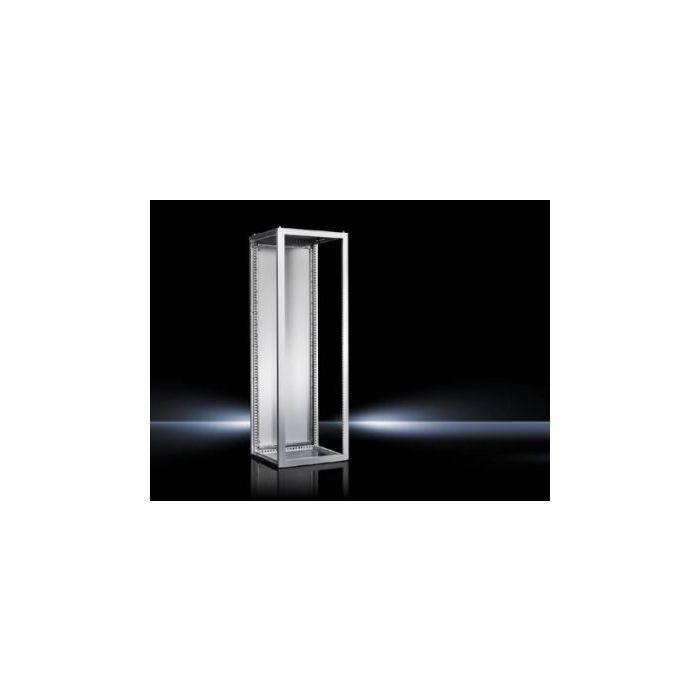

Baying enclosure system VX25 Electronic enclosure
Part No.:
8430000
Brand:
Availability:
Forward delivery 6-9 weeks
| Part No. | 8430000 |
|---|---|
| UOM | EA |
| Packaging Unit | EA |
| Material | Enclosure frame: Sheet steel, 1.5 mm Roof: Sheet steel, 1.5 mm Front frame: Extruded aluminium sections with die-cast corner pieces Rear door: Sheet steel, 2.0 mm Gland plates: Sheet steel, 1.5 mm Adaptor sections, 482.6 mm (19"): Sheet steel |
| Scope of delivery | Enclosure frame Front frame (r/h hinge, held on the left via mechanical snap fasteners) Rear door (r/h hinge, may be swapped to opposite side) Roof plate Gland plates Adaptor sections, 482.6 mm (19"), front |
| Weight (KG) | 67.80 |
|---|---|
| Dimension Width (mm) | 600.00 |
| Dimension Height (mm) | 2,000.00 |
| Dimension Depth (mm) | 600.00 |
Description
VX Electronic enclosure, WHD: 600x2000x600 mm, sheet steel, with hinged front frame, with adaptor sections 19", single door at the rear
