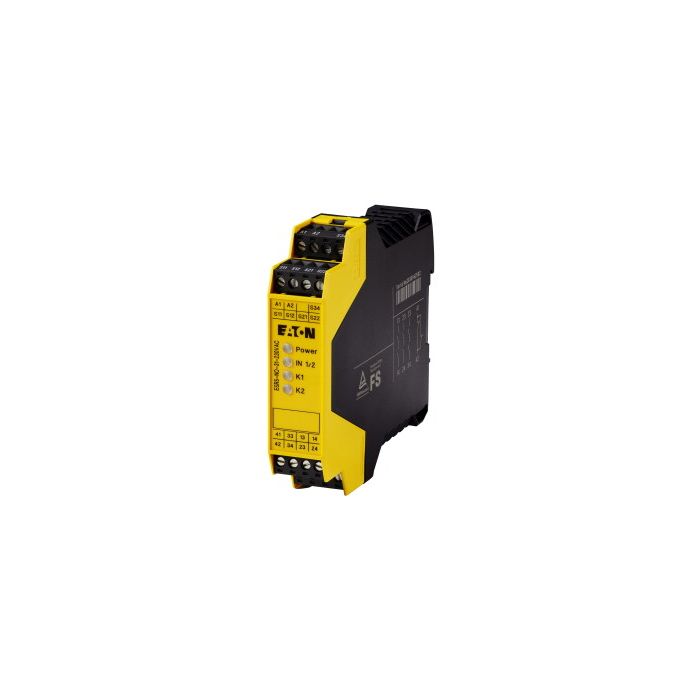

Eaton ESR5 Safety relay
Article No.:
119380
Part No.:
ESR5-NO-31-230VAC
Brand:
Safety relay emergency stop/protective door, 230VAC, 3 enabling paths
Availability:
Forward delivery 5-7 weeks
| Part No. | ESR5-NO-31-230VAC |
|---|---|
| UOM | EA |
| Weight (KG) | 0.18 |
|---|---|
| Dimension Width (mm) | 22.50 |
| Dimension Height (mm) | 99.00 |
| Dimension Depth (mm) | 114.50 |
Description
Safety relay dual-channel, for implementing the basic functions emergency switching off, emergency stop, and protective door, supply voltage 230VAC 50/60Hz, 3 Enable current paths (IEC/EN 60204 Stop category 0), 1 signal current path, busbar tag shroud to EN 50274 with vertical actuation from the front finger- and back-of-hand proof, suitable for cat. 4 according to EN 954-1 / PL e according to EN ISO 13849-1 / SILCL3 according to IEC 62061 / SIL3 according to IEC 61508, housing protection type IP20, installation location IP54 minimum, TÜV tested, rated impulse voltage 4 kV / basic isolation (safe isolation, reinforced insulation and 6 kV between A1-A2 / logic / enable and signal current paths)
