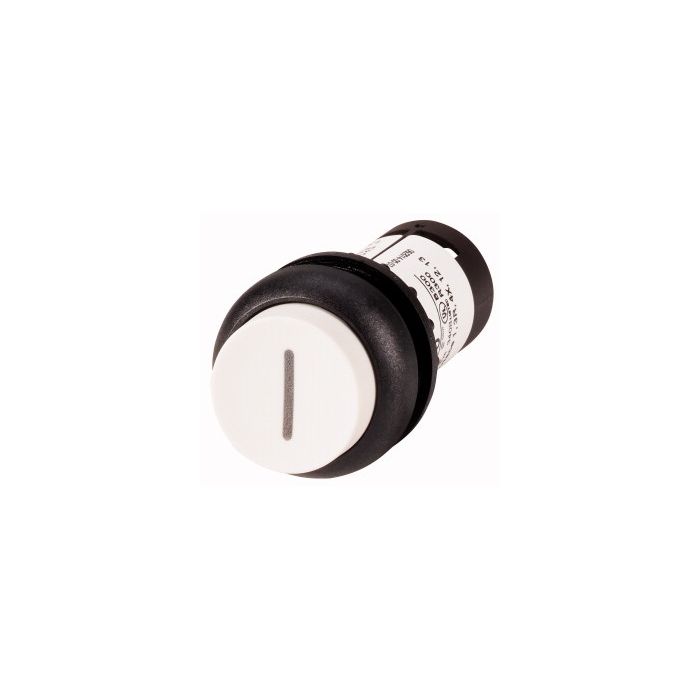

Eaton Moeller® series C22 Pushbutton
Article No.:
121558
Part No.:
C22S-DRH-W-X1-K11
Brand:
Pushbutton, Extended, maintained, 1 NC, 1 N/O, Screw connection, White, inscribed, Bezel: black
Availability:
Forward delivery 4-6 weeks
| Part No. | C22S-DRH-W-X1-K11 |
|---|---|
| UOM | EA |
| Weight (KG) | 0.02 |
|---|---|
| Dimension Width (mm) | 30.00 |
| Dimension Height (mm) | 30.00 |
| Dimension Depth (mm) | 61.00 |
Description
Pushbutton, RMQ Compact, Complete unit, Design: Extended, maintained, Connection type: Screw connection, button plate: White, Button plate inscribed, Name: I, Degree of Protection: IP66, IP67, IP69K, Bezel: black, Connection to SmartWire-DT: no, Contacts N/C = Normally closed: 1 NC, N/O = Normally open: 1 N/O, Contacts Notes: = safety function, by positive opening to IEC/EN 60947-5-1, Actuator travel and actuation force as per DIN EN 60947-5-1, K.5.4.1: mm 4.65, Maximum travel: mm 5.7, Minimum force for positive opening: N 20, Positive opening (ZW): yes, Standards: IEC/EN 60947-5-1, VDE 0660
