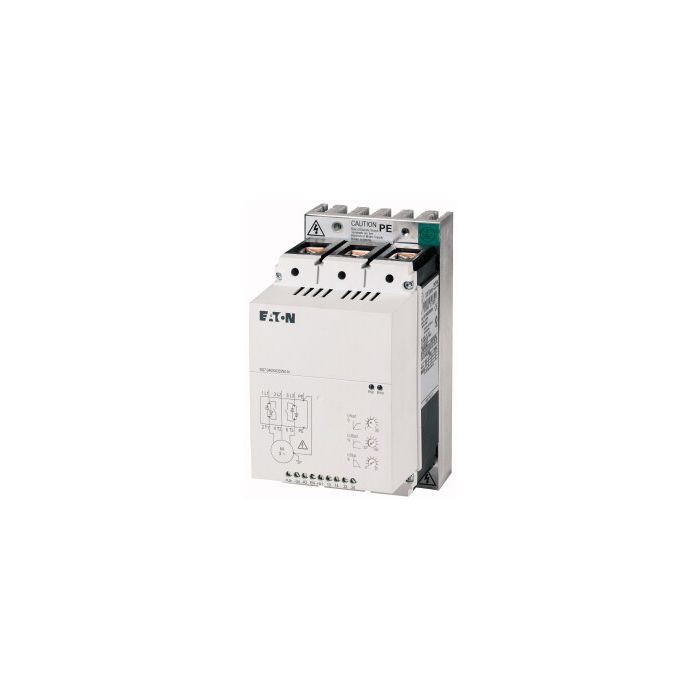

Eaton DS7 Soft starter
Article No.:
171751
Part No.:
DS7-340SX100N0-L
Brand:
Soft starter, 100 A, 200 - 480 V AC, 24 V AC/DC, Frame size FS3, Ambient temperature Operation -40 - +40 °C
Availability:
Forward delivery 6-9 weeks
| Part No. | DS7-340SX100N0-L |
|---|---|
| UOM | EA |
| Weight (KG) | 1.83 |
|---|---|
| Dimension Width (mm) | 90.00 |
| Dimension Height (mm) | 175.00 |
| Dimension Depth (mm) | 139.00 |
Description
Soft starter, Description: With internal bypass contacts, Function: Soft starters for three-phase loads, Mains supply voltage (50/60 Hz): ULN= 200 - 480 V AC, Supply voltage: Us= 24 V AC/DC, Control voltage: UC= 24 V AC, 24 V DC, Assigned motor rating (Standard connection, In-Line) at 400 V, 50 Hz: P= 55 kW, at 460 V, 60 Hz: P= 75 HP, Rated operational current AC-53: Ie= 100 A, Rated operational voltage: Ue= 200 V, 230 V, 400 V, 480 V, Connection to SmartWire-DT: no, Frame size: FS3, Standards: IEC/EN 60947-4-2, UL 508, CSA22.2-14
