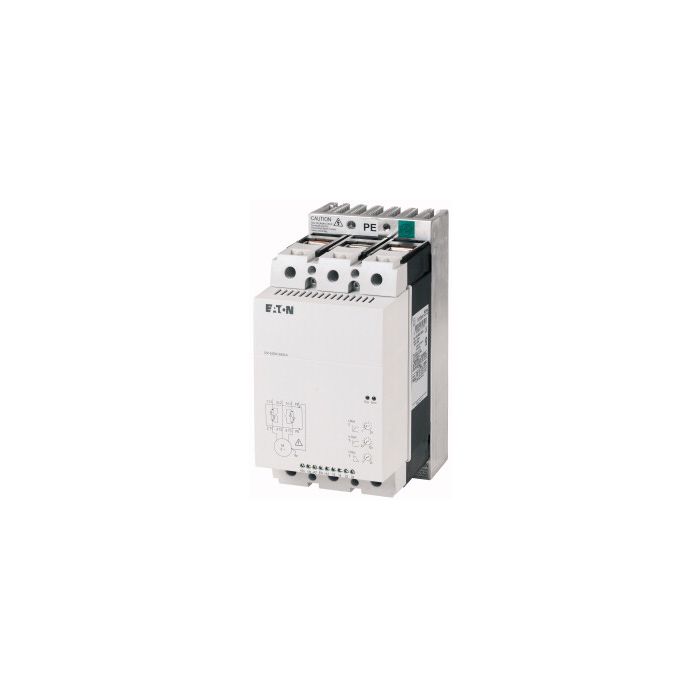

Eaton DS7 Soft starter
Article No.:
134958
Part No.:
DS7-34DSX160N0-D
Brand:
Soft starter, 160 A, 200 - 480 V AC, 24 V DC, Frame size: FS4, Communication Interfaces: SmartWire-DT
Availability:
Forward delivery 6-9 weeks
| Part No. | DS7-34DSX160N0-D |
|---|---|
| UOM | EA |
| Weight (KG) | 3.70 |
|---|---|
| Dimension Width (mm) | 108.00 |
| Dimension Height (mm) | 215.00 |
| Dimension Depth (mm) | 195.00 |
Description
Soft starter, Product range: SmartWire-DT slave, Description: With internal bypass contacts, Function: Soft starters for three-phase loads, Mains supply voltage (50/60 Hz): ULN= 200 - 480 V AC, Supply voltage: Us= 24 V DC, Control voltage: UC= 24 V DC, Assigned motor rating (Standard connection, In-Line) at 400 V, 50 Hz: P= 90 kW, at 460 V, 60 Hz: P= 125 HP, Rated operational current AC-53: Ie= 160 A, Rated operational voltage: Ue= 200 V, 230 V, 400 V, 480 V, Connection to SmartWire-DT: yes, Frame size: FS4, Standards: IEC/EN 60947-4-2, UL 508, CSA22.2-14
