Eaton Moeller series NZM - Molded Case Circuit Breaker
Article No.:
189743
Part No.:
NZM2/3-XA2A208-240AC
Brand:

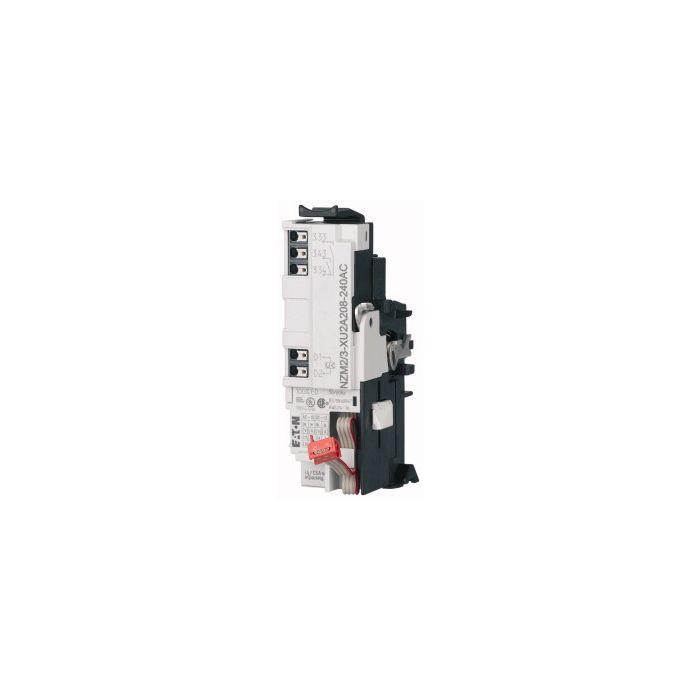

Shunt release for NZM2/3, configurable relays, 2NO, 208-240AC, Push-in terminals
Availability:
Forward delivery 6-9 weeks
Part No. | NZM2/3-XA2A208-240AC |
---|---|
UOM | EA |
Weight (KG) | 0.08 |
---|---|
Dimension Width (mm) | 75.00 |
Dimension Height (mm) | 65.00 |
Dimension Depth (mm) | 115.00 |
Description
Optional accessories for the circuit-breaker series NZM offers a comprehensive portfolio of application options for use world wide. The mounting is always flexible and easy thanks to the modular function groups. Notes: Shunt releases with two relays. Switches are tripped by a voltage pulse or by the application of uninterrupted voltage. For signalizing commands or different states of the circuit-breaker. Two relays per unit. Actuation reason can be configured in the trip unit. Configuration via communication or circuit breaker display or front USB connection and Eaton Power Xpert Protection Manager. When the shunt release is live, contact with the circuit-breaker's main contacts on switching on is reliably prevented. Only suitable for use in conjunction with circuit-breakers with electronic releases. Shunt release relais modules cannot be installed simultaneously with early-make contact NZM…-XHIV, or untervoltage release NZM…-XU…, or shunt release NZM…-XA… Relay coil actuated by trip unit. Relay contact for control wiring. Control wiring to push-in terminals. Cannot be used with PXR10 NZM-AE electronic release.
