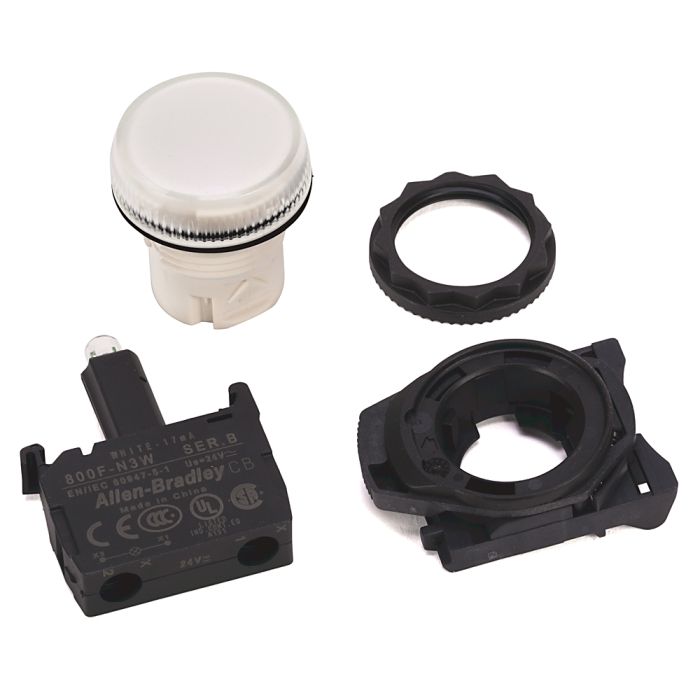

22mm Pilot Light 800F PB
Part No.:
800FM-P3MN7G
Brand:
| Product Type | 22mm Pilot Light |
|---|
| Certifications | UL,UR, CSA, CCC, CE |
|---|
| Number of indicator lights | 1 |
|---|---|
| Voltage type | AC |
| Rated operating voltage Ue | 24 V |
| Illumination lamp type | Green LED |
| Operator construction/material | Metal |
| Illumination module input voltage | 240V AC (LED) |
| Operating temperature | -25 °C |
|---|---|
| Humidity | ≤95% RH from 25...60 °C (77...140 °F) |
| Storage temperature | -40 °C |
| Hole diameter | 22.5 mm |
|---|---|
| Type of electric connection | Screw connection |
| Illumination module mounting style | Latch |
| Operator type | Pilot light |
| Enclosure compatibility | IP66, Type 4/13 (800FM - round metal operator) |
| Vibration | 10 G maximum |
| Shock | 100 G |
| With front ring | True |
|---|---|
| Construction type lens | Round |
| Material front ring | Metal |
| Colour lens | Green |
| Operator cap/button shape | Round |
| Operator cap type | Fresnal |
| Operator cap color | Green |
| Operator cap/button material | Metal |
| Latch material | Metal |
| Termination style | Screw |
Availability:
Forward delivery 5-7 weeks
