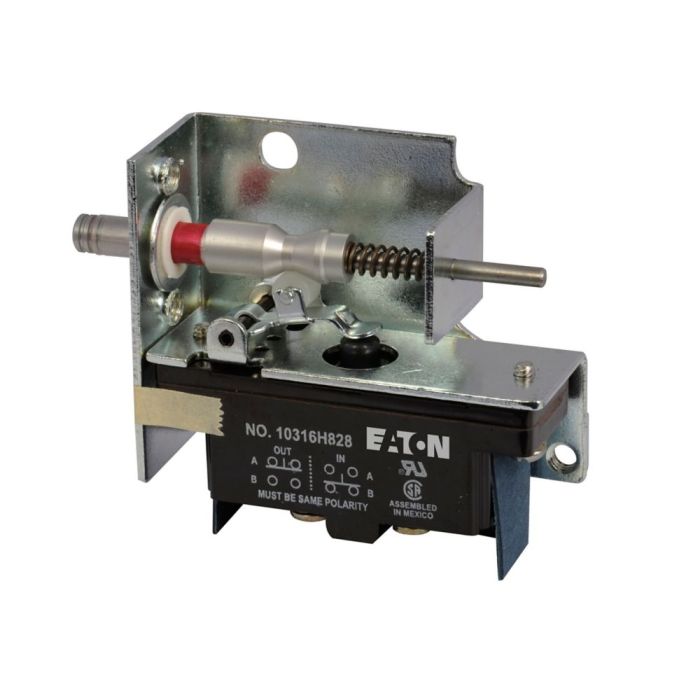

10316 TYPE L LIMIT SWITCH
Article No.:
10316H1039
Part No.:
10316H1039
Brand:
Eaton 10316 hazardous location limit switch,
Standard, 10° pre-travel, Screw terminals,
5A at 240 Vac, 0.5A at 240 Vdc, 2NO
CERTIFICATIONS CSA Certified ,UL Listed
Product specifications
Contact Rating : 5A at 240 Vac, 0.5A at 240 Vdc
Enclosure material : Die cast aluminum
Connection : Screw terminal
Contact configuration : 2 NO
Switch type : Standard, 10 ° pre-travel
Operating temperature : - max 200 °F
Operating temperature : - min -20 °F
Environmental rating : NEMA 7 Division I Class I BCD, NEMA 9 Division I Class II EFG
Maximum AC current : 10 A continuous
Maximum DC current : 0.1 A
Availability:
Forward delivery 6-9 weeks
