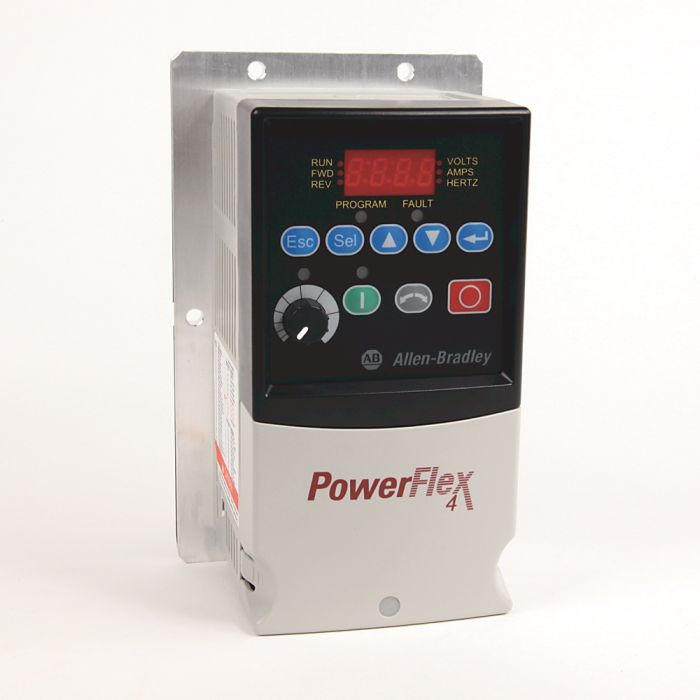

PowerFlex 4- 0.75 kW (1 HP) AC Drive
Part No.:
22A-D2P3H204
Brand:
AC Drive,0.75 kW (1 HP),480V AC Input,3 PH,50-60 Hz,2.3 A Output,IP20,UL-NEMA Type Open,Plate Mounting,With Brake IGBT, OmitHeatsink,Frame A, 0.95 PF,Integral Keypad With Flash Rom And Led Display, RS485, Fixed Terminal Block Connections.
Availability:
Forward delivery 5-7 weeks
| Part No. | 22A-D2P3H204 |
|---|---|
| UOM | EA |
| Weight (g) | 1.37 |
|---|---|
| Dimension Width (mm) | 13.69 |
| Dimension Height (mm) | 14.61 |
| Dimension Depth (mm) | 23.19 |
Description
AC Drive,0.75 kW (1 HP),480V AC Input,3 PH,50-60 Hz,2.3 A Output,IP20,UL-NEMA Type Open,Plate Mounting,With Brake IGBT, OmitHeatsink,Frame A, 0.95 PF,Integral Keypad With Flash Rom And Led Display, RS485, Fixed Terminal Block Connections.
