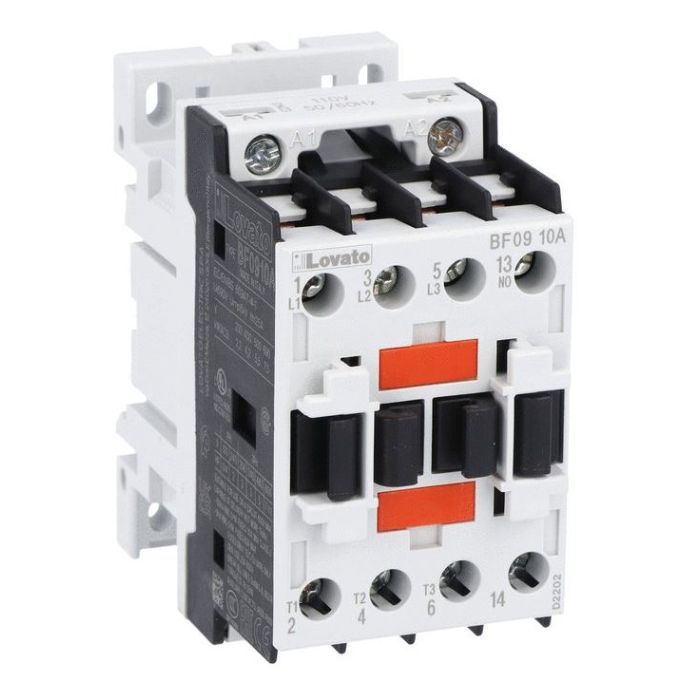

3P CONTACTOR 1NO 9A AC3 48/50-60
Part No.:
BF0910A048
Brand:
Three-pole contactor, IEC operating current Ie (AC3) = 9A, AC coil 50/60Hz, 48VAC, 1NO auxiliary contact
| Product designation & Type | Power contactor BF09 |
| Number of poles | 3 |
| Type of coil | AC coil 50/60Hz |
| Rated insulation voltage Ui IEC/EN | 48, 690 |
| IEC operating current(AC1) [A] (AC3) | 25 , (AC3) 400V [A/Kw] 9A / 4.2Kw |
| UL/CSA horsepower ratings 480V [HP] | 5 |
| Type of built-in auxiliary contacts | 1NO |
| Type of mounting | Screw / DIN rail 35mm |
| Weight | 362 gm |
| Certifications | CCC , EAC, cULus |
| Conformity | IEC/EN/BS 60947-1, IEC/EN/BS 60947-4-1, UL 60947-1, UL 60947-4-1, CSA C22.2 n° 60947-1, CSA C22.2 n° 60947-4-1 |
Availability:
Forward delivery 6-9 weeks
